2WD EPA Chassis Dynamometers | Burke E. Porter Machinery Company
Our 2WD EPA chassis dynamometers have the same durability, and accuracy our customers have come to expect from our products. Our dynamometer systems bring true flexibility to the world of laboratory testing—and due to their modular designs, various MIM (motor-in-the-middle) systems can be designed to suit your needs.
Speak with an Expert2WD EPA Chassis Dynamometers
At the center of our flexible, modular design is the Model 4100 2WD MIM dynamometer, which can be used as a fixed or moveable dynamometer or combined with a second dynamometer as part of a Model 4500 4WD MIM test system.
Details
Dynamometer
Model 4100 MIM
Dynamometer

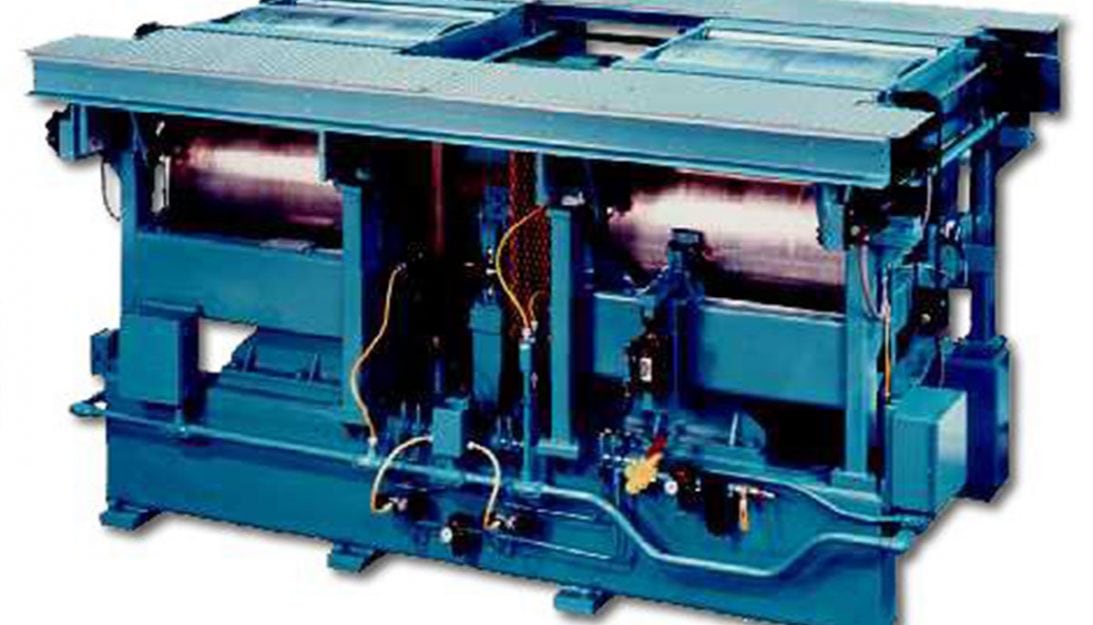

Our Model 4100 MIM Dynamometers are comprised of two 48-inch diameter, chrome-plated steel rollers driven by an AC electric motor coupled to a digital AC vector drive to provide road load simulation. A unique trunnion bearing system allows for pure measurement of the torque delivered to the vehicle drivetrain without the need to compensate for bearing losses or the need to employ complicated, actively powered bearing systems.
Dynamometer
Model 5325 Moveable MIM
Dynamometer
The Model 5325 Moveable MIM Dynamometer is a Model 4100 mounted to a heavy-duty, welded sub-frame on linear bearings—a continuous loop, multi-section deck mechanism attached to the moveable dynamometer chassis allows it to be moved while providing a rugged platform on which to drive the test vehicle.
Dynamometer
Model 4442 Mileage Inline Accumulator
Dynamometer
The Model 4442 Mileage Inline Accumulator Dynamometer is a medium duty machine used to test 2WD vehicles in the LDV/MDV weight classes. The MIM Chassis Dynamometer features an AC Flux Vector motor/absorber mounted between two dynamometer rolls.
