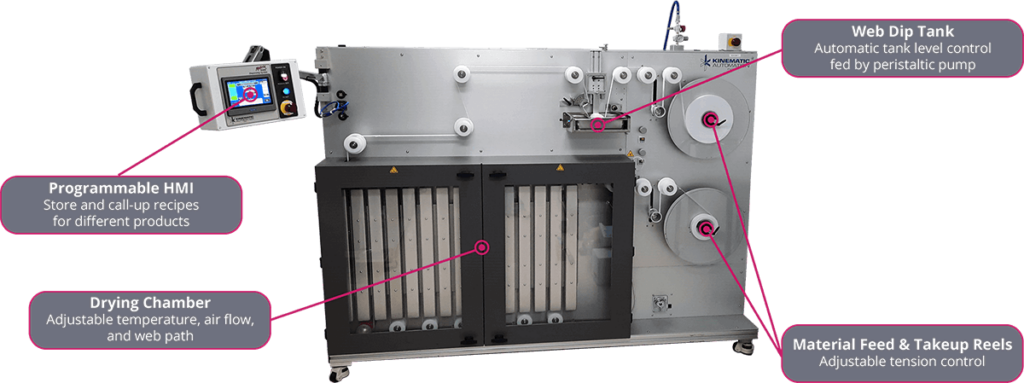

Matrix™ 6300 Dip Coating for Narrow Webs Overview
The Matrix 6300 allows for continuous coating of delicate and narrow membranes for lateral flow assays and other, similar products. The integral High Efficiency Dryer provides for a hands-free drying process allowing improved efficiency and product quality.
Multiple recipe storage provides for simple and reliable set-up & operation while simplifying process validation.
Key Features
- Payout and Take-up of material on reels
- Payout tension and uptake tension controlled with separate feedback loops
- Reels as large as 40 cm (16 inches) in diameter
- Dip Tank with automatic level monitoring and peristaltic pump control
- Drying chamber with a variable capacity of from approximately 3 to 12.5 m (10 to 40 feet) of material
- Drying chamber temperature controllable from room temperature to 55 degrees Celsius (131 °F) monitored at 2 points
- 3 Inlet blowers for drying chamber each with controllable air flow
- IR (Infrared) Temperature Sensor for web at exit of dryer
- Library of up to14 different recipes with all process parameters
- Different security levels for different operations (Operator, Maintenance, R and D, and Administrator)
- Simple touch screen operation
- Support for printing reports (printer not included)
Matrix 6500™ Overview
The Matrix 6500 Dip & Dry Module was developed to meet the requirements of the moderate to high volume production facility. The unit was designed in modular fashion to allow process flexibility while at the same time optimizing product yields and throughput.
The Matrix 6500 allows for continuous coating of membrane for lateral flow assays and other, similar products. The integral High Efficiency Dryer provides for a hands-free drying process allowing improved efficiency and product quality.
Multiple recipe storage provides for simple and reliable set-up & operation while simplifying process validation.
Key Features
- Simple setup and operation
- Recipe storage to support multiple products
- Variable web tension control
- Closed loop speed control
- Touch screen operation on Integral Swing Arm
- Automatic dip tank level control with peristaltic pump
- Output & Take-up Reel flanges provided
- Integral casters for easy mobility

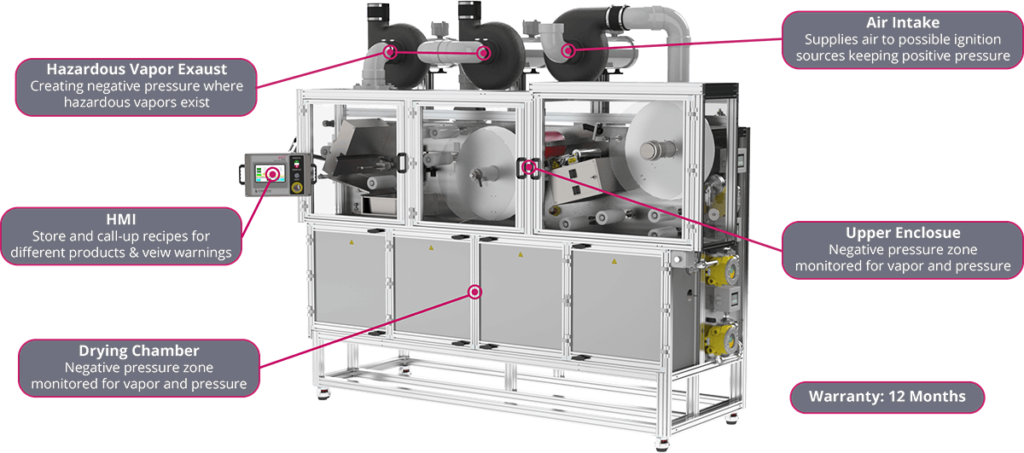

Matrix 6500H™ Overview
The Matrix 6500H Dip and Dry Platform for Combustible Liquids has been specifically developed for the application of hazardous or flammable liquids used in the coating of continuous web.
A remote electrical control enclosure containing both the system operating controls as well as the safety monitoring devices operates under positive internal pressure to eliminate the intrusion of hazardous fumes. Provisions within the electrical control enclosure allow for monitoring of facility requirements as an option.
Negative pressure fume containment with high efficiency exhaust work in conjunction with monitoring devices to create safe and efficient liquid application and drying processes.
The system safeguards are triple redundant, fully self-monitoring and fully automatic.
The highly efficient drying and fume removal system allows for accelerated processing speeds and superior performance.
Key Features
- Simple setup and operation
- Air chuck on rewind hub
- Recipe storage to support multiple products
- Variable web tension control
- Speed controlled in real time with feedback loop
- Dipping station automatic level monitoring with
- peristaltic pump control
- Four inlet blower/heaters for drying chamber air flow
- controllable up to 400 cfm
- Web steering mechanism for wide web
- Combustible liquid vapor elimination and detection
