Kinematic Matrix 6300 Reel-to-Reel Dispensing Platform
The Matrix 6300 Reel-to-Reel Dispensing Platform was developed to meet the requirements of the moderate to high volume production facility. The unit was designed in modular fashion to allow process flexibility while at the same time optimizing product yields and throughput.
Speak with an ExpertOverview
The Matrix 6300 Reel-to-Reel Dispensing Platform was developed to meet the requirements of the moderate to high volume production facility. The unit was designed in modular fashion to allow process flexibility while at the same time optimizing product yields and throughput.
The Matrix 6300 has applications for continuous striping of membranes using non-contact or contact dispense. The new High Efficiency Dryer provides for a hands-free dispensing/drying process allowing improved efficiency and quality.

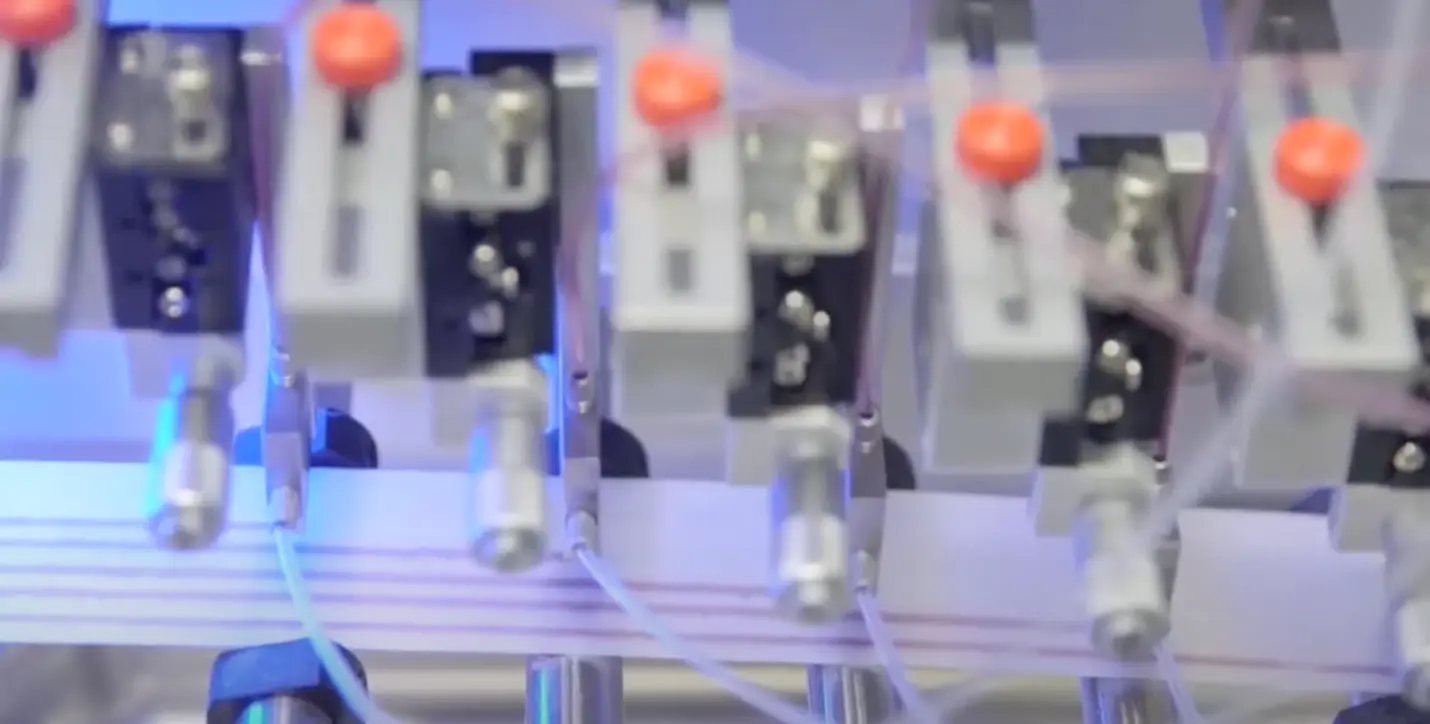

The ability to continuously stripe up to 5 lines with 100% in process inspection allows the ultimate in quality and throughput. Multiple recipe storage capability provides for simple and reliable set-up & operation while simplifying process validation.
Matrix 6300 Reel-to-Reel Dispensing Platform Diagram
Key Features
- High efficiency directed air plenum design drying chamber
- Low web tension capability
- 100% in-process inspection with reject marking
- Touchscreen operator interface for ease of setup & operation
- Multiple recipe storage
- Simple Validation
- Closed loop speed & dispense control
- Highly precise liquid delivery
- Small machine footprint
- Micrometer Adjustable line positions
- Web temperature sensing
