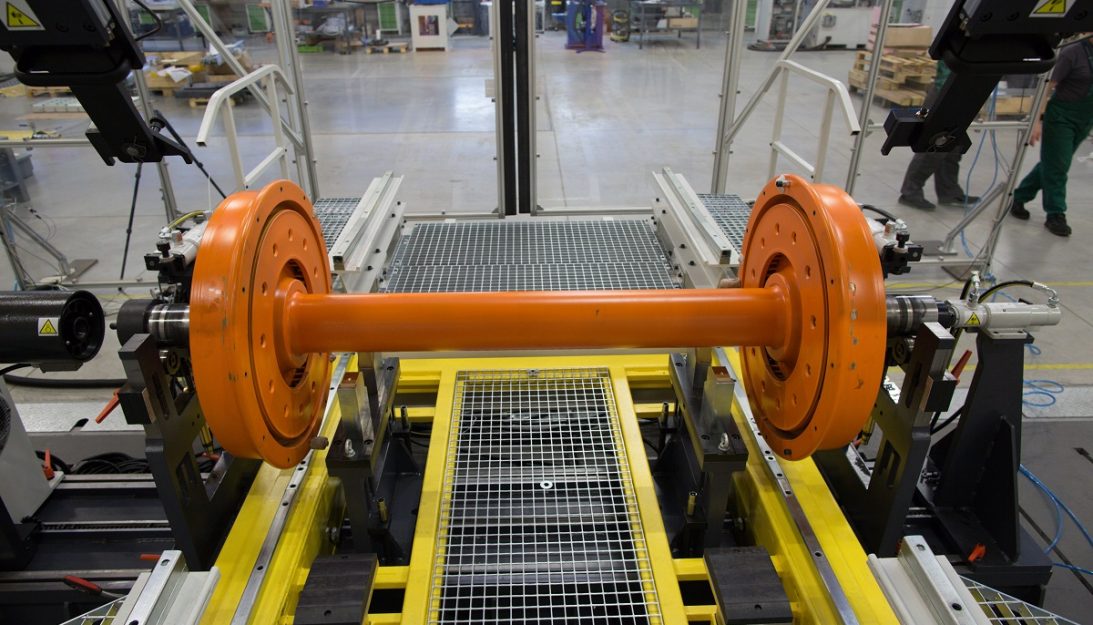

Balancers for wheel sets
Horizontal balancing machines for railway wheelsets from 1,000 to 5,000 kg with automatic floating coupling connection.
automatic connection of spindle to a wheelset with a help of specially designed floating coupling
custom design for every customer
intuitive and easy to operate software
summary reports and possibility to save as PDF, CSV, XLS
latest measuring and control unit ROTORTEST based on microprocessor technology
different correction methods like eccentric turning, milling, drilling, grinding, adding balancing weights
safety guarding standard ISO 21940-23:2012 (old ISO 7475 and DIN 45690) compliant
automatic connection of spindle to a wheelset with a help of specially designed floating coupling
custom design for every customer
intuitive and easy to operate software
summary reports and possibility to save as PDF, CSV, XLS
latest measuring and control unit ROTORTEST based on microprocessor technology
different correction methods like eccentric turning, milling, drilling, grinding, adding balancing weights
safety guarding standard ISO 21940-23:2012 (old ISO 7475 and DIN 45690) compliant
Selected Capabilities
automatic connection of spindle to a wheelset with a help of specially designed floating coupling
custom design for every customer
intuitive and easy to operate software
Key Features
automatic connection of spindle to a wheelset with a help of specially designed floating coupling
custom design for every customer
intuitive and easy to operate software
summary reports and possibility to save as PDF, CSV, XLS
latest measuring and control unit ROTORTEST based on microprocessor technology
different correction methods like eccentric turning, milling, drilling, grinding, adding balancing weights
safety guarding standard ISO 21940-23:2012 (old ISO 7475 and DIN 45690) compliant
Technical Specifications
Technical Specifications
| Specification | CMT-1000 | CMT-3000 | CMT-5000 |
|---|---|---|---|
| Maximum weight for symmetrical rotor | 1000kg | 3000kg | 5000kg |
| Maximum rotor diameter | 1080 / 1700 mm | 1150 / 1800 mm | 1380 / 1980 mm |
| ISO 2953 Reduction Ratio | 98% | 98% | 98% |
| Accuracy – MU 60 runs @ 95% 2 standard deviations | 3 | 7 | 15 |
| Journal range | 15-220mm | 20-250mm | 20-280mm |
| Working height approx. | 1120mm | 1170mm | 1325mm |
| Voltage & phase. All 50-60Hz | 220 or 400V 3 ph | 220 or 400V 3 ph | 220 or 400V 3 ph |
End Drive (H2C)
| Specification | CMT-1000 | CMT-3000 | CMT-5000 |
|---|---|---|---|
| Maximum distance between bearers with standard bed | 2160mm | 2065mm | 1900mm |
| Incremental bed length increases | 1200 + 2200mm | 1200 + 2200mm | 1200 + 2200mm |
| Minimum distance between bearer centre line | 70mm | 60mm | 85mm |
| Infinitely variable balancing speed | 600-1400RPM | 600-1400RPM | 600-1400RPM |
| AC motor size | 2,2 kW | 4 kW | 5,5 kW |
Frequently Asked Questions
The Balancers for Wheel Sets are horizontal balancing machines on a bed designed for railway wheelsets of different sizes and construction. They support capacities from 1,000 to 5,000 kg and feature automatic floating coupling connection to the wheelset.
