Mobile equipment Vehicles end-of-line

Horizontal boring machine

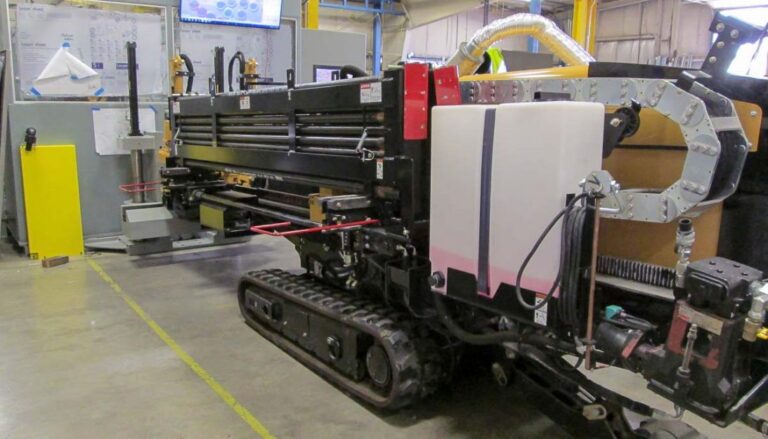

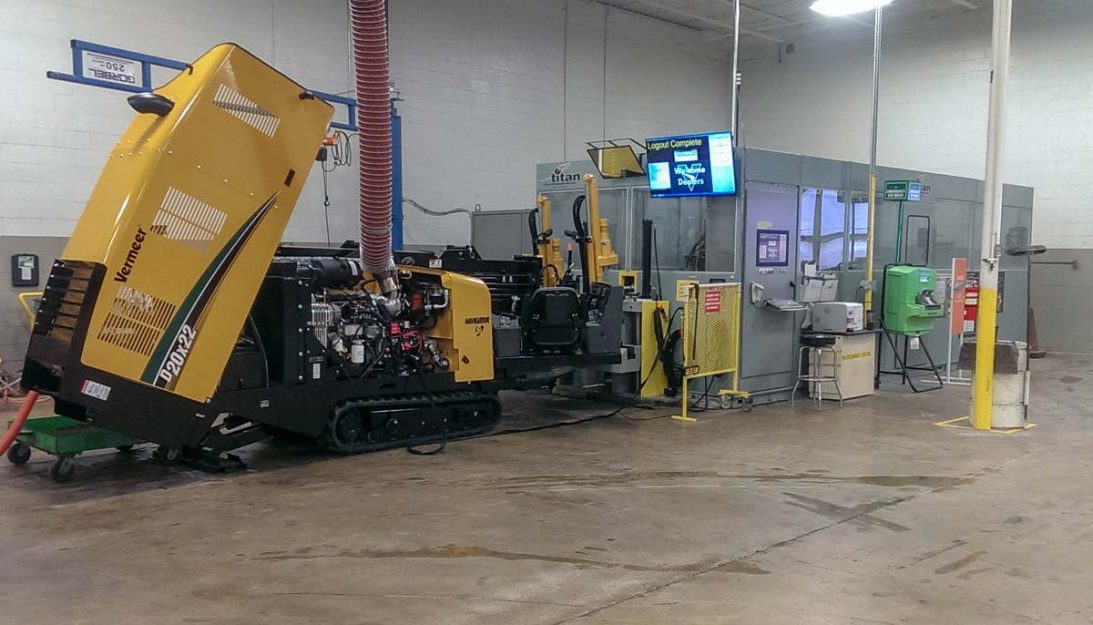

Titan Horizontal Boring Machine system for mobile equipment vehicles end-of-line applications. This test station is capable of functional testing various shapes and sizes of horizontal directional drilling machines used for trenchless installation of piping, cables, or conduit. This fully loaded test applies force against the push and pull of the boring drill along with resistance to the rotational movement of the drill itself. Other functions such as CAN, mudding system, underground current detection are also verified with this test.

Computer based control and data acquisition system Large steel weldment anchored to factory floor built to withstand the push and pull forces of the boring machine. Movable cradle with hydraulic motors to use to resist the push and pull force of the vehicle under test. 100,000 lb Load Cell to measure both tension and compression Safety Scanners Particle Counter Computer based control and data acquisition system Large steel weldment anchored to factory floor built to withstand the push and pull forces of the boring machine. Movable cradle with hydraulic motors to use to resist the push and pull force of the vehicle under test. 100,000 lb Load Cell to measure both tension and compression Safety Scanners Particle Counter
Low and High Idle RPM Checks Warm up cycle Rotational Charge Pressure Thrust Charge Pressure Auxiliary Charge Pressure Rod Rotational Speed Thrust Force Pullback Force Clockwise/Counter Clockwise Rotational Force Vehicle Wheel Speed Mud Pump Charge Pressure Mud Pump Flow Mud Pump Relief Underground current sensor detection for cable breaks and cable detection Oil Sampling and Particle Counting CAN DTC Monitoring and CAN system checks Low and High Idle RPM Checks Warm up cycle Rotational Charge Pressure Thrust Charge Pressure Auxiliary Charge Pressure Rod Rotational Speed Thrust Force Pullback Force Clockwise/Counter Clockwise Rotational Force Vehicle Wheel Speed Mud Pump Charge Pressure Mud Pump Flow Mud Pump Relief Underground current sensor detection for cable breaks and cable detection Oil Sampling and Particle Counting CAN DTC Monitoring and CAN system checks
Selected Capabilities
Computer based control and data acquisition system

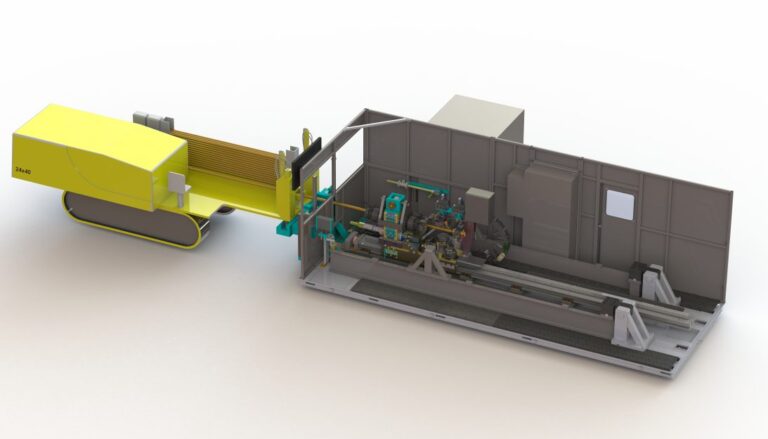

Large steel weldment anchored to factory floor built to withstand the push and pull forces of the boring machine.
Movable cradle with hydraulic motors to use to resist the push and pull force of the vehicle under test.
Request a quote
Horizontal Boring Machine

Overview

This test station is capable of functionally testing various shapes and sizes of horizontal directional drilling machines used for trenchless installation of piping, cables, or conduit. The fully loaded test applies force against the push and pull of the boring drill along with resistance to the rotational movement of the drill itself. Other functions such as CAN, the mudding system, and underground current detection are also verified.

Key Features

Computer based control and data acquisition system
Large steel weldment anchored to factory floor built to withstand the push and pull forces of the boring machine.
Movable cradle with hydraulic motors to use to resist the push and pull force of the vehicle under test.
100,000 lb Load Cell to measure both tension and compression
Safety Scanners
Particle Counter

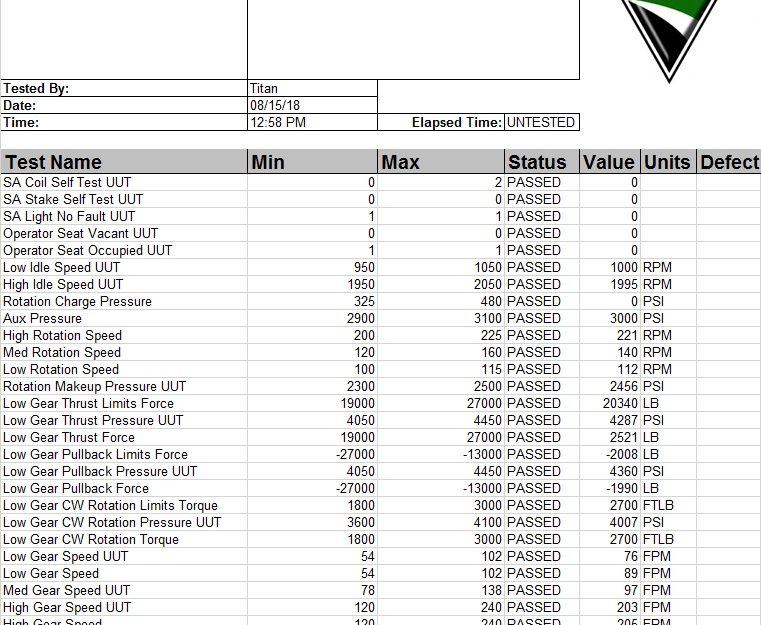

Tests & Measurements

Low and High Idle RPM Checks
Warm up cycle
Rotational Charge Pressure
Thrust Charge Pressure

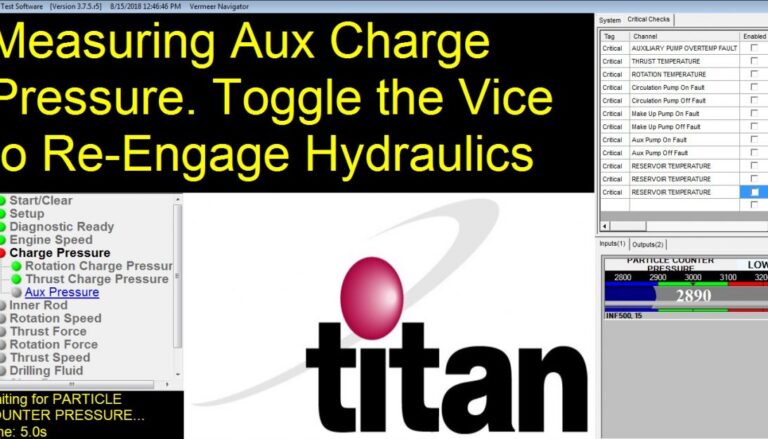

Auxiliary Charge Pressure

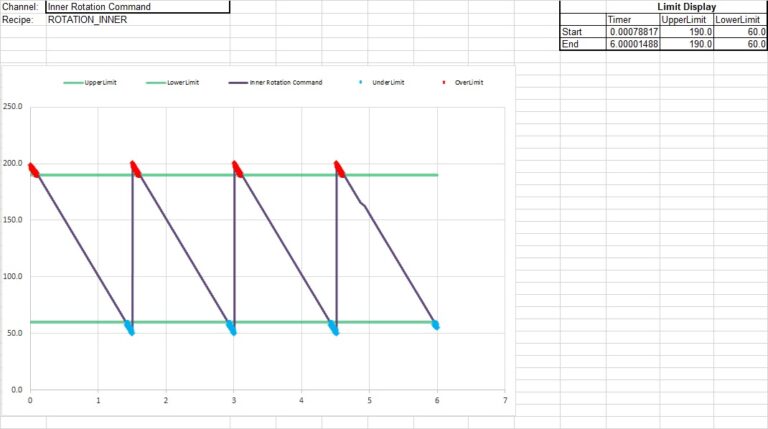

Rod Rotational Speed
Thrust Force
Pullback Force
Clockwise/Counter Clockwise Rotational Force
Vehicle Wheel Speed
Mud Pump Charge Pressure
Mud Pump Flow
Mud Pump Relief
Underground current sensor detection for cable breaks and cable detection
Oil Sampling and Particle Counting
CAN DTC Monitoring and CAN system checks

Technical Specifications

Load Cell

100,000 lb (tension and compression)

Frequently Asked Questions

The Ascential T&M Horizontal Boring Machine test system is designed for mobile equipment vehicles end-of-line applications. It is capable of functional testing various shapes and sizes of horizontal directional drilling machines used for trenchless installation of piping, cables, or conduit.

Ready to upgrade your infrastructure?

Contact our engineering team for a custom quote or technical consultation regarding Horizontal boring machine.

Speak with an expert Browse catalog
