Mobile equipment Implements - end-of-line

Hay baler – round & square

Titan Hay Baler - Round & Square system for mobile equipment implements - end-of-line applications. We have stations capable of fully functionally testing large round, large square, and small square balers. The testing system uses an electrical VFD driven PTO spline with the PTO shaft mounted on a swing arm. The system includes a full HPU to run auxiliary functions such as bale liftgate lift, tying mechanism, bale alignment, tensioning system, etc.

Computer based control and data acquisition system Full HPU to generate hydraulic power to the unit under test 12 GPM 3000 PSI HPU Safety Zone Scanners 60hp VFD controlled electric motor Vertical swing arm to raise and lower PTO shaft and spline 90 degree gearbox to transfer power from the electric motor to the PTO shaft CAN bus validation and DTC monitoring Lifting gate cylinder, valve and hydraulic system tests Tie and wrap setup and alignment Computer based control and data acquisition system Full HPU to generate hydraulic power to the unit under test 12 GPM 3000 PSI HPU Safety Zone Scanners 60hp VFD controlled electric motor Vertical swing arm to raise and lower PTO shaft and spline 90 degree gearbox to transfer power from the electric motor to the PTO shaft CAN bus validation and DTC monitoring Lifting gate cylinder, valve and hydraulic system tests Tie and wrap setup and alignment
Lifting gate cylinder, valve, hydraulic system tests Gate cycle timing Pickup cycle timing Bale size calibration Bale shape setup and calibration Belt tracking Knife clearance and functionality Brake light testing Tie and wrap setup/alignment Noise and system torque testing Lifting gate cylinder, valve, hydraulic system tests Gate cycle timing Pickup cycle timing Bale size calibration Bale shape setup and calibration Belt tracking Knife clearance and functionality Brake light testing Tie and wrap setup/alignment Noise and system torque testing
Selected Capabilities
Computer based control and data acquisition system
Full HPU to generate hydraulic power to the unit under test
12 GPM 3000 PSI HPU
Request a quote
Hay Baler – Round & Square

Overview

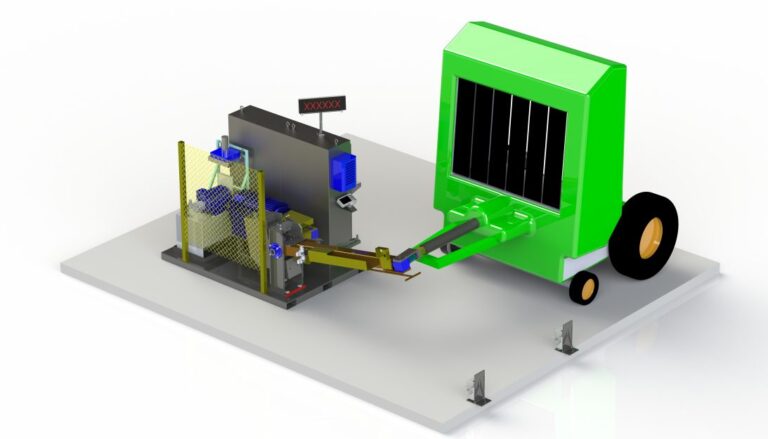

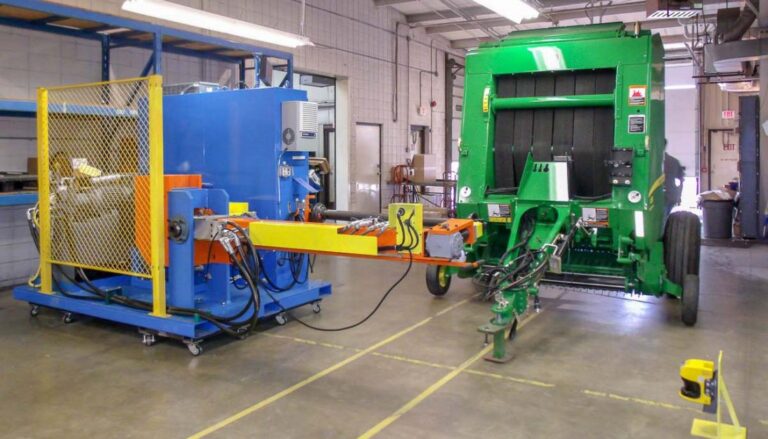

Titan offers stations capable of fully functional testing of large round, large square, and small square balers. The main baler power comes from an electrical VFD-driven PTO spline. The PTO shaft is swung into place in front of the balers on the assembly line via a swing arm that rotates down into position and back out of the way of assembly traffic. Once connected, the area is kept clear with safety zone scanners. The system also incorporates a full HPU to run auxiliary functions such as bale liftgate lift, tying mechanism, bale alignment, tensioning system, and more.

Key Features

Computer based control and data acquisition system
Full HPU to generate hydraulic power to the unit under test
12 GPM 3000 PSI HPU
Safety Zone Scanners
60hp VFD controlled electric motor

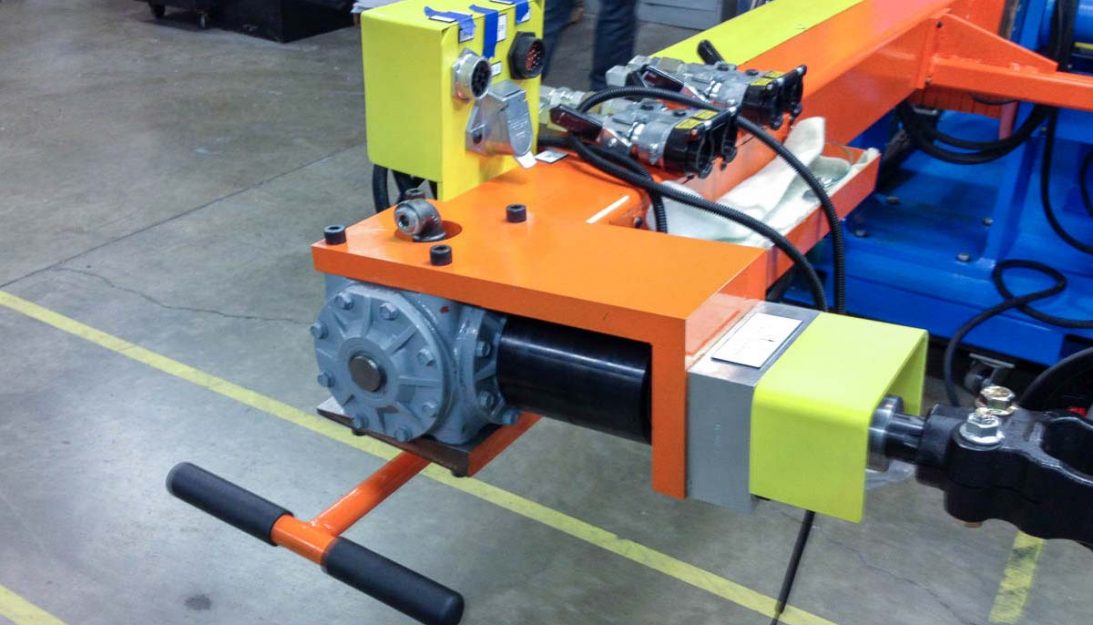

Vertical swing arm to raise and lower PTO shaft and spline
90 degree gearbox to transfer power from the electric motor to the PTO shaft
CAN bus validation and DTC monitoring
Lifting gate cylinder, valve and hydraulic system tests
Tie and wrap setup and alignment

Tests & Measurements

Lifting gate cylinder, valve, hydraulic system tests
Gate cycle timing
Pickup cycle timing
Bale size calibration
Bale shape setup and calibration
Belt tracking
Knife clearance and functionality
Brake light testing
Tie and wrap setup/alignment
Noise and system torque testing

Technical Specifications

HPU

12 GPM 3000 PSI

Motor

60hp VFD controlled electric motor

Frequently Asked Questions

The Ascential T&M Hay Baler - Round & Square system is designed for mobile equipment implements end-of-line applications. It is capable of fully functionally testing large round, large square, and small square balers, using an electrical VFD driven PTO spline with the PTO shaft mounted on a swing arm.

Ready to upgrade your infrastructure?

Contact our engineering team for a custom quote or technical consultation regarding Hay baler – round & square.

Speak with an expert Browse catalog
