Galileo TP charger
Next-generation equipment for evacuation and refrigerant charging.
Evacuation, leak testing and refrigerant charging
Engineered to handle flammable gases (R290, R32, R600)
Charges any kind of HC, CFC, HCFC, HFC and flammable blends
Real-time control mass flow meter with ATEX controls
Volumetric turbine flow meter
Galileo Dosing Cylinder metering device
Capacitive LCD 15.6-inch touch screen operator panel
Secure, remote connection in accordance with IEC 62443 cybersecurity
Remote firmware and software updates
Built-in spare parts viewer
Evacuation, leak testing and refrigerant charging
Engineered to handle flammable gases (R290, R32, R600)
Charges any kind of HC, CFC, HCFC, HFC and flammable blends
Real-time control mass flow meter with ATEX controls
Volumetric turbine flow meter
Galileo Dosing Cylinder metering device
Capacitive LCD 15.6-inch touch screen operator panel
Secure, remote connection in accordance with IEC 62443 cybersecurity
Remote firmware and software updates
Built-in spare parts viewer
Selected Capabilities
Evacuation, leak testing and refrigerant charging
Engineered to handle flammable gases (R290, R32, R600)
Charges any kind of HC, CFC, HCFC, HFC and flammable blends
Overview

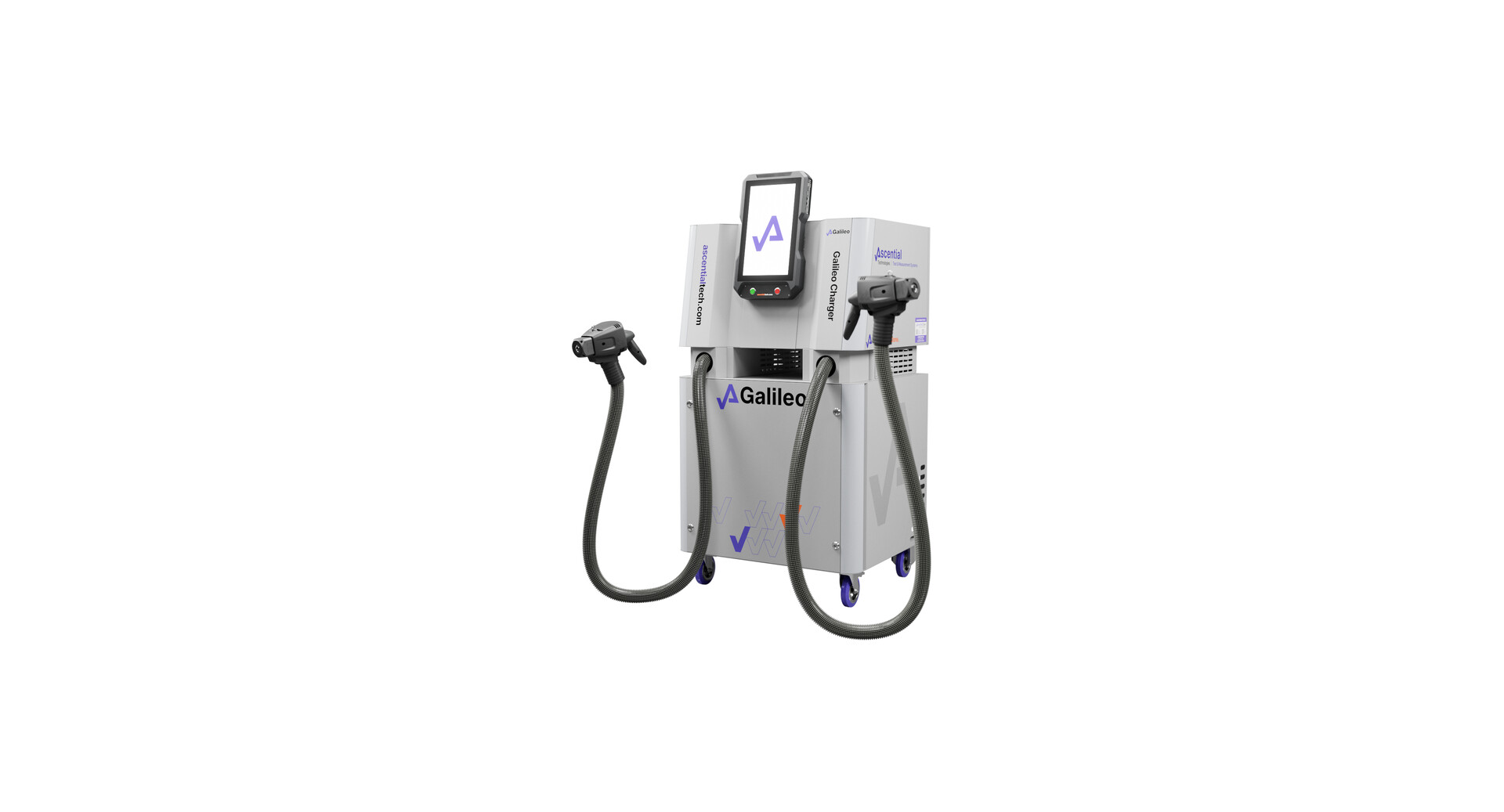

The Galileo TP Charger is a next-generation machine engineered to handle flammable gases and can be integrated into any cooling-unit assembly line for evacuation, leak testing and refrigerant charging. This system supports applications ranging from low production rates with small charge volumes to high production rates with large charge volumes (R290, R32, R600). Additionally, it can charge any kind of HC, CFC, HCFC, HFC and flammable blends.
Key Features
Evacuation, leak testing and refrigerant charging
Engineered to handle flammable gases (R290, R32, R600)
Charges any kind of HC, CFC, HCFC, HFC and flammable blends
Real-time control mass flow meter with ATEX controls
Volumetric turbine flow meter
Galileo Dosing Cylinder metering device
Capacitive LCD 15.6-inch touch screen operator panel
Secure, remote connection in accordance with IEC 62443 cybersecurity
Remote firmware and software updates
Built-in spare parts viewer
Technical Specifications
| Specification | Value |
|---|---|
| No. filling injectors | 1÷2 |
| Length filling hose | 3.5 m (others upon request) |
| No. programmable cycles | 1000 (possibility to send cycles from external system) |
| Connections | ¼” + 3/8” Hansen TM female quick coupler, ¼ PCU 62 Series, ¼” + 3/8” NITTO SP Cupla Type A |
| No. dosing systems | 1÷4 |
| Metering device (one each machine) | Mass-flow meter; Volumetric turbine meter; Volumetric dosing cylinder with piston single effect |
| No. programmable bar codes | 5000 (more upon request) |
| Units of measurement | Weight: g, oz; Vacuum: Pa, μHg, mbar; Pressure: kPa, psi, bar; Temperature: °C, °F |
| Vacuum pump | Double stage, 18 m³/h or 28 m³/h ATEX (others upon request) |
| Final vacuum | <1×10⁻² Pa (1×10⁻⁴ mbar) |
| Dimensions (HxLxW) | 1500×800×800 mm |
| Weight | 250 kg approx. for charging machine |
| Working temperature | 0 ÷ +50 °C |
| Electric power supply | Δ 200 ÷ 230 / Y 380 ÷ 415 V, 50 Hz 3 Ph; Δ 200 ÷ 230 / Y 460 V, 60 Hz 3 Ph (others upon request) |
| Power consumption | 1000 W |
| Compressed air | 600 ÷ 800 kPa (6÷8 bar). The air must be filtered and dehumidified 20μ |
| Noise level | < 70 dB (A) |
| Refrigerants | R32, R290, R600, all CFC, HCFC, HFC, and new blends |
| Refrigerants supply pressures | 1000÷3500 kPa (10÷35 bar). Max working pressure 3800 kPa (38 bar) |
| Programmable dose | 5 ÷ 99999.9 g (it depends on the dosing technology) |
| Accuracy HC (<100 g) | ±0.5 g (@ 25 bar refrigerant) |
| Accuracy HC (>100 g) | ±0.5 % (@ 25 bar refrigerant) |
| Accuracy HFC (<200 g) | ±1.0 g (@ 25 bar refrigerant) |
| Accuracy HFC (>200 g) | ±0.5 % (@ 25 bar refrigerant) |
| Maximum charging speed (data of Mass Flow Meter) | Up to 130 g/s (CFC, HCFC, HFC); Up to 90 g/s (HC/R32) |
| High speed kit (data of Mass Flow Meter) | Up to 230 g/s (CFC, HCFC, HFC); Up to 150 g/s HC/R32 |
Product Details
Provides accurate dosing through a mix of technologies, including:
- Real-time control mass flow meter with a piezoresistive pressure sensor and ATEX controls to provide the fastest speed and the safest conditions
- Volumetric turbine flow meter with special temperature and pressure sensors to control the volume and mass during the injection phase
- Galileo Dosing Cylinder metering device for the most reliable dosing
The machine also offers:
- An embedded control system
- Ability to be equipped with an ATEX double stage rotary vacuum pump to verify whether the cooling circuit being tested is already filled or evacuated
- A “COBRA” filler gun

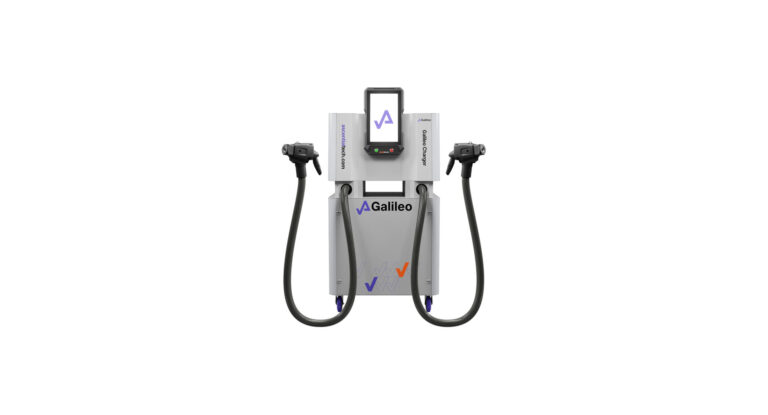

Gallery
Frequently Asked Questions
The Ascential T&M Galileo TP Charger is a next-generation machine engineered to handle flammable gases. It can be integrated into any cooling-unit assembly line for evacuation, leak testing and refrigerant charging, and supports applications ranging from low production rates with small charge volumes to high production rates with large charge volumes (R290, R32, R600).
