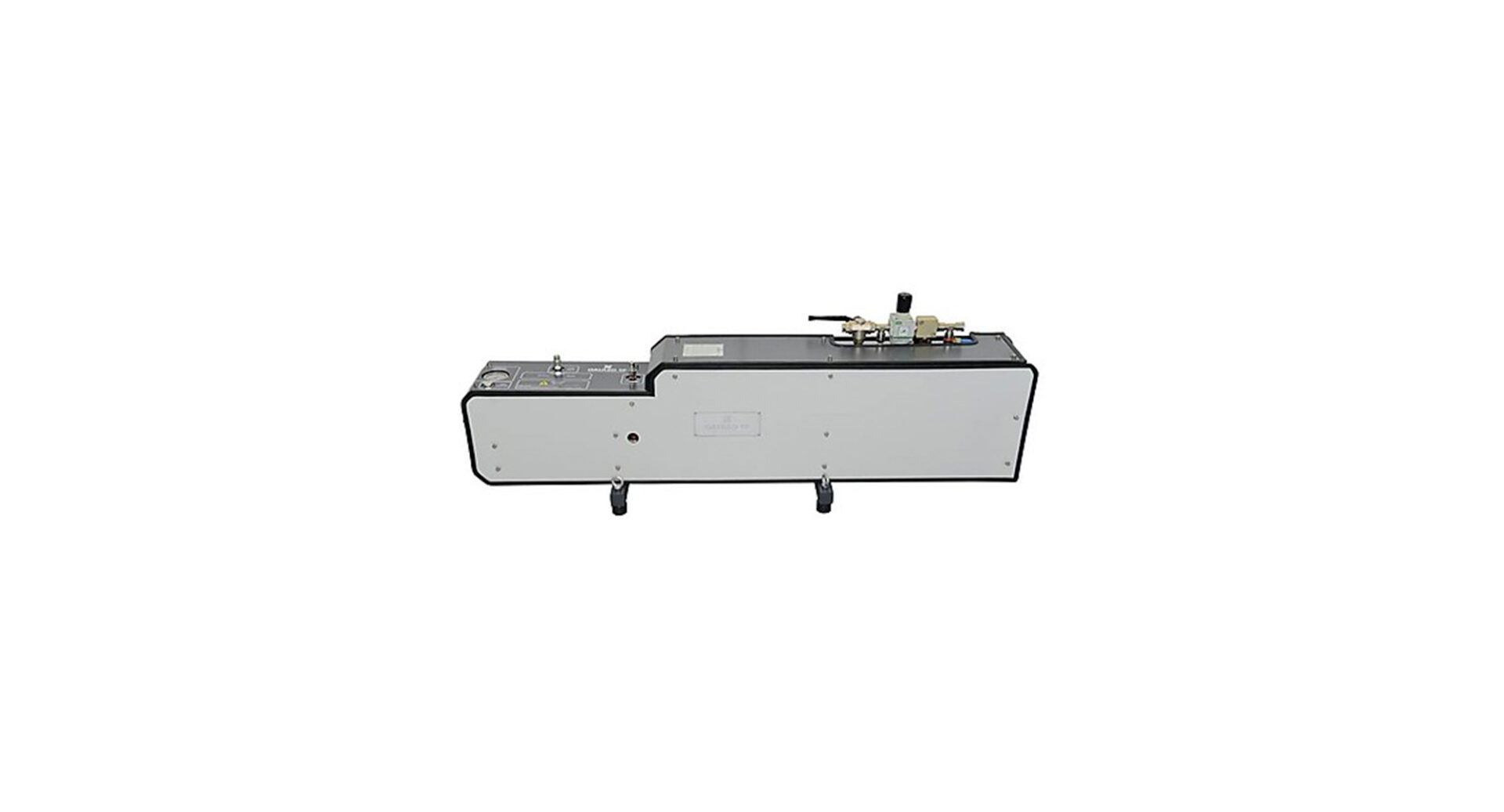

RP4
transfer pump for refrigerant fluids both flammable and not flammable including CFC, HFC, HCFC, and HC refrigerants.
Overview
RP4 is a transfer pump for refrigerant fluids, both flammable and non-flammable. Refrigerants such as CFC, HFC, and HCFC (R12, R22, R502, R134a, R407, R410) as well as HC (R600a, R290, R32) can be handled by the RP4.
The RP4 is composed of a twin-effect refrigerant cylinder driven by a pneumatic cylinder; check valves are mounted in each of the two refrigerant cylinder heads.
By adding a hydraulic accumulator with a bag-type membrane filled with nitrogen (optional), delivery pressure drops can be leveled when the piston reaches the end of stroke. A water cooling system is also available as an option.
Key Features
Technical Specifications
RP4
| Model | Flow rate | Max working pressure |
|---|---|---|
| RP4 | 6 l/min | 35 bar |
Frequently Asked Questions
The Ascential T&M RP4 is a transfer pump for both flammable and non-flammable refrigerant fluids. It is composed of a twin-effect refrigerant cylinder driven by a pneumatic cylinder, with check valves mounted in each cylinder head.
Ready to upgrade your infrastructure?
Contact our engineering team for a custom quote or technical consultation regarding RP4.
